MC/MCH Electronic Control Booster Pump

MC/MCH  Cold/Hot Water

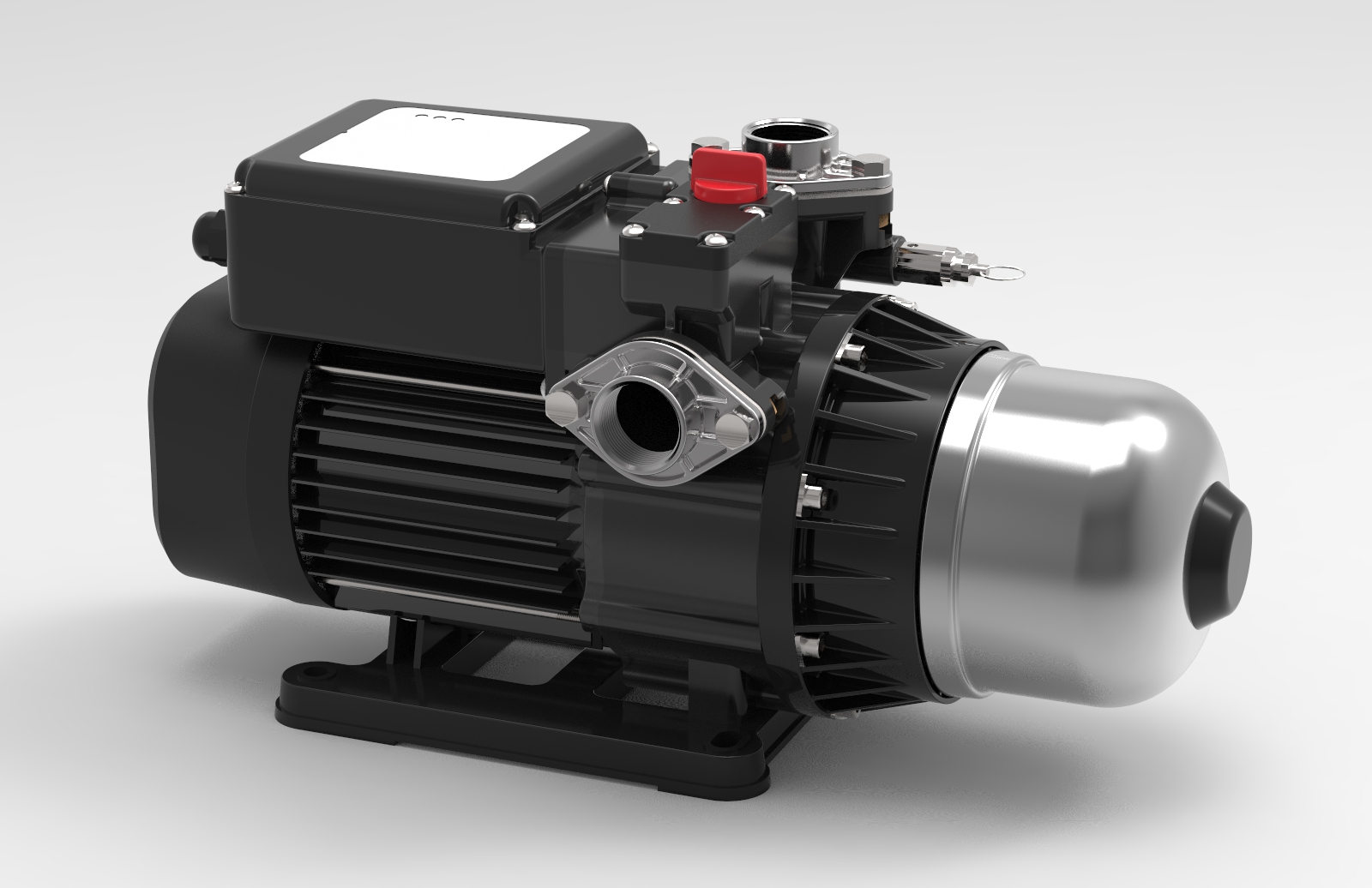

The MC water pump is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller.

The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

Product Features

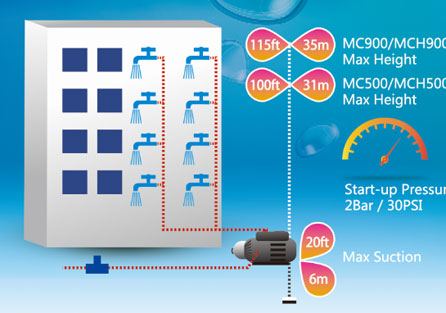

• This MC Series are designed for pressure boosting in residential and commercial applications.

• Cold Water Series pumps use strong multistage plastic impellers for water up to +40°C.

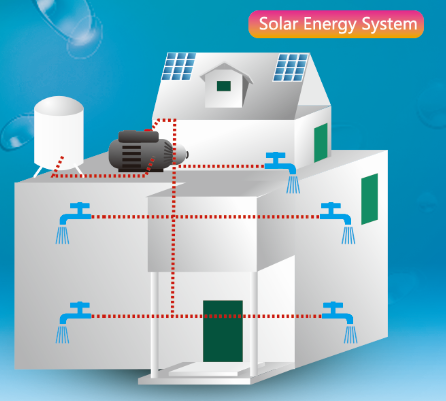

  Hot Water Series adopt stainless steel impellers which suitable for solar energy or other types of hot water system (up to +90°C).

• Compact design and quiet operation.

• The motor has built-in thermal overload to protect against high operating temperatures.

• It has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

• Relief value assembled in Hot Water Series will automatically release the pressure when the pump full system pressure exceeds 5kg/cm2.

• Indicator light can easy to check the pump status

Operation Conditions
1. Suitable liquid: potable water or other clean or non-corrosive liquids.

2. Ambient temperature: Max. +40°C

3. Liquid temperature: +4°C ~ +90°C

4. Relief pressure value automatically: 5kg/cm2

5. Relative humidity: Max. 85% (RH)

* Voltage and frequency available upon request.

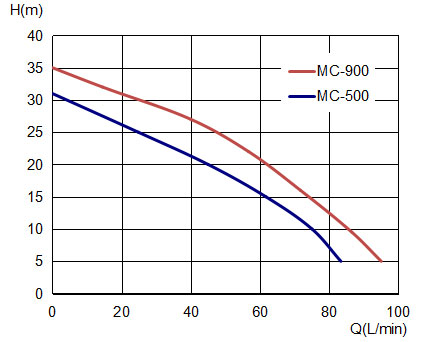

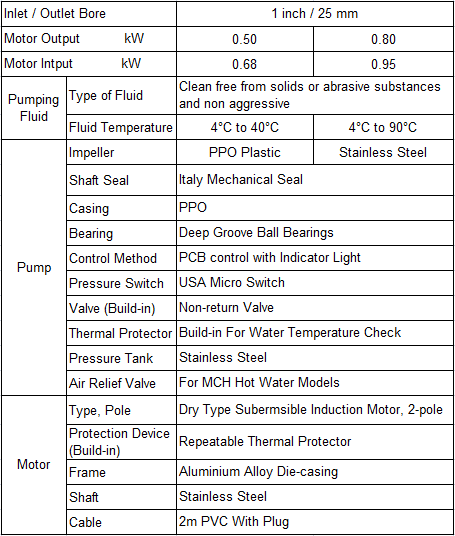

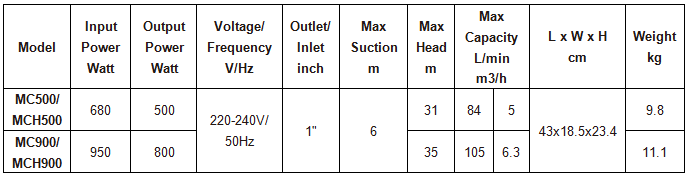

Standard Specification
