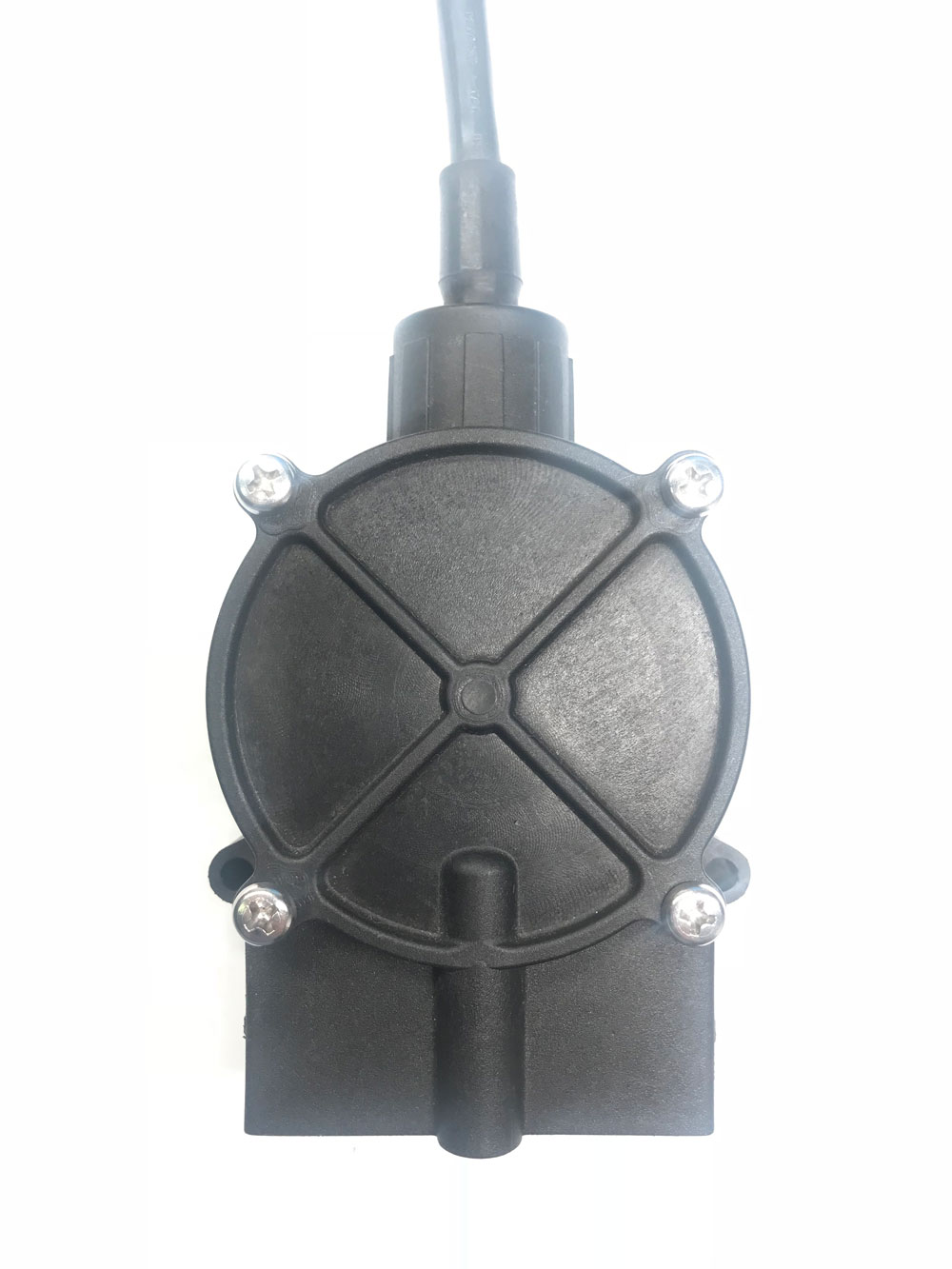

X1000  Extra Low Level Piggyback Diaphragm Switch

with 5.5m Power Cord and Power Socket

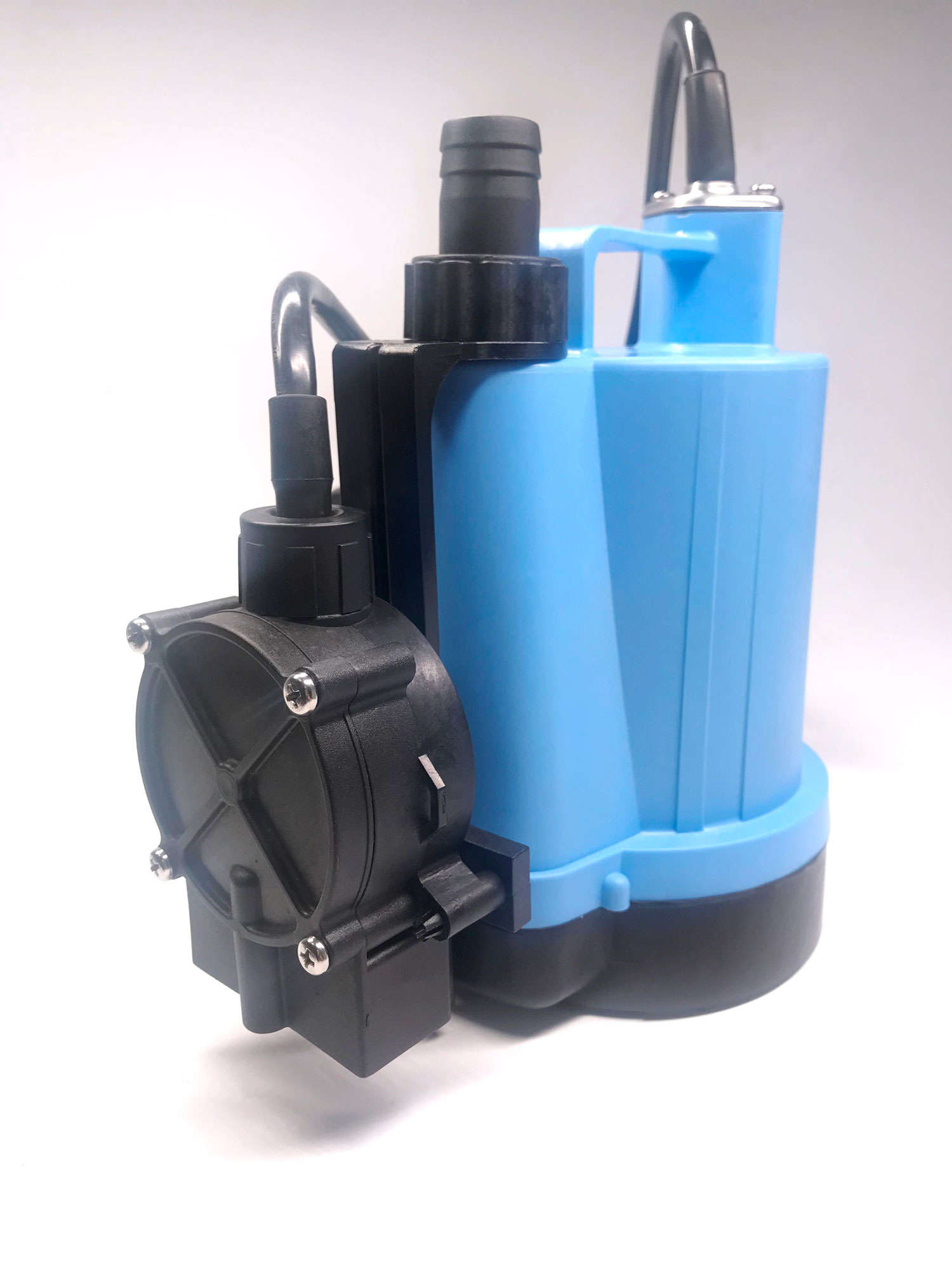

The remote switch X-1000 for submersible pumps can be used either by attaching it to Little Giant 5-MSP pump or used separately with other pumps to control on-off operation of the pump. The switch is activated by pressure to a diaphragm which activates a switch providing power to the pump.

Specifications

Type: Diaphragm

Max. Amps Running: 10A

Voltage: 115V/230V

PVC Cord Length: 5.5m Connect Cord & 0.25m Power Cable

Max. Temperature: 50℃

Float and Socket Cover Material: PP+Fiberglass

Dimensions: Switch 148x86x42mm, Socket 130x55x52mm

Features

· Converts any manual pump to automatic operation, up through 1 HP

· Easy Installation, with Quick Piggy-Back Plugs and Power Socket

· When the water drops too low, the switch turns the pump off; when the water level comes back up the switch turns the pump back on

· Match with Little Giant 5-MSP，start level 5cm-7.6cm，off level 1.27cm-3.8cm

Installation

· For installation on the Little Giant 5-MSP, 6-CIM-R or 6-CBM-R pumps

· For installation on M-100, HOME, CSS-250, 50PS pumps

· For universal installation, X-1000 can be attached to a pipe with the cable ties provided

· Automatic power cord contains a breather tube. Be sure power cord is not pinched so that breather tube is obstructed. Non-restrictive air flow in breather tube is required for proper operation

· Test the pump after all electrical connections have been made. Do not attempt to run the pump without water; this could result in permanent damage to the pump

Includes:

(1) Pump Cut-Off Switch, (2) Mountain Screws, (2) Cable Ties, (1) M-100 bracket
