Vinflo Series Level Regulator
Vinflo-06, Vinflo-13, Vinflo-20

Material

n Body: polypropylene

n Cable: Rubber CE

Technical Data

n Liquid temperature:  min. 0℃ (32℉)

                                 max. 60℃ (140℉)

n Liquid density:  min. 0.95g/cm3
                  max. 1.10g/cm3

n Degree of protection: IP68

n Micro switch data

Interrupting capacity of USA micro switch:
AC, resistive load, 250V 10A
AC, inductive load, 250V 3A
With ENEC / VDE Certification

The VINFLO is a build-type level regulator for level regulation and control of pumps and valves. It is the simplest possible method for level control!

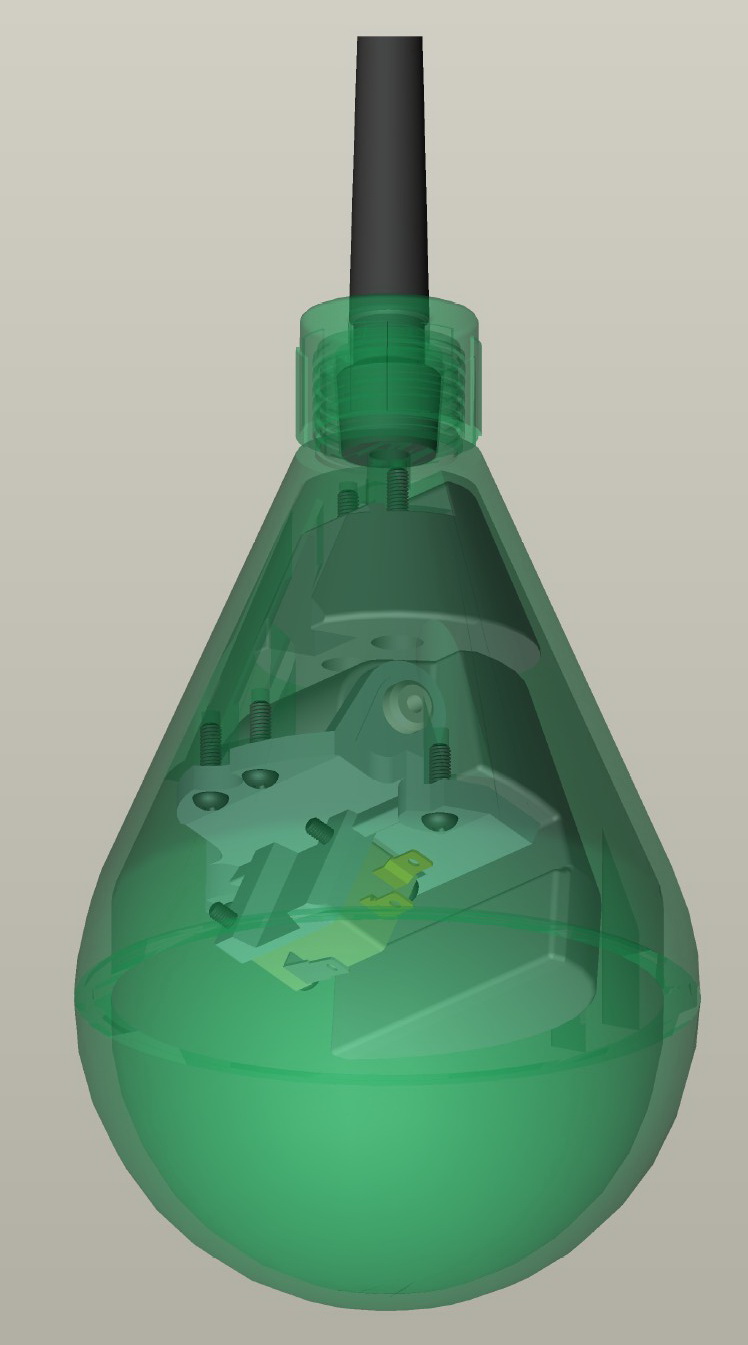

A mechanical switch in a plastic casing, freely suspended at the desired height from its own cable. When the liquid level reaches the regulator, the casing will tilt and the mechanical switch will close or break the circuit, thereby starting or stopping a pump or actuating an alarm device.

No wear, no maintenance! In sewage pumping stations, for ground water and drainage pumping — in fact, for most level control applications — the Vinflo is the ideal solution with CE certificate.

This level regulator is available in different versions, depending upon the medium in which it is to be used. As standard, the regulator can be obtained with 6, 13 or 20 meters (20, 42 or 65 feet) of cable.

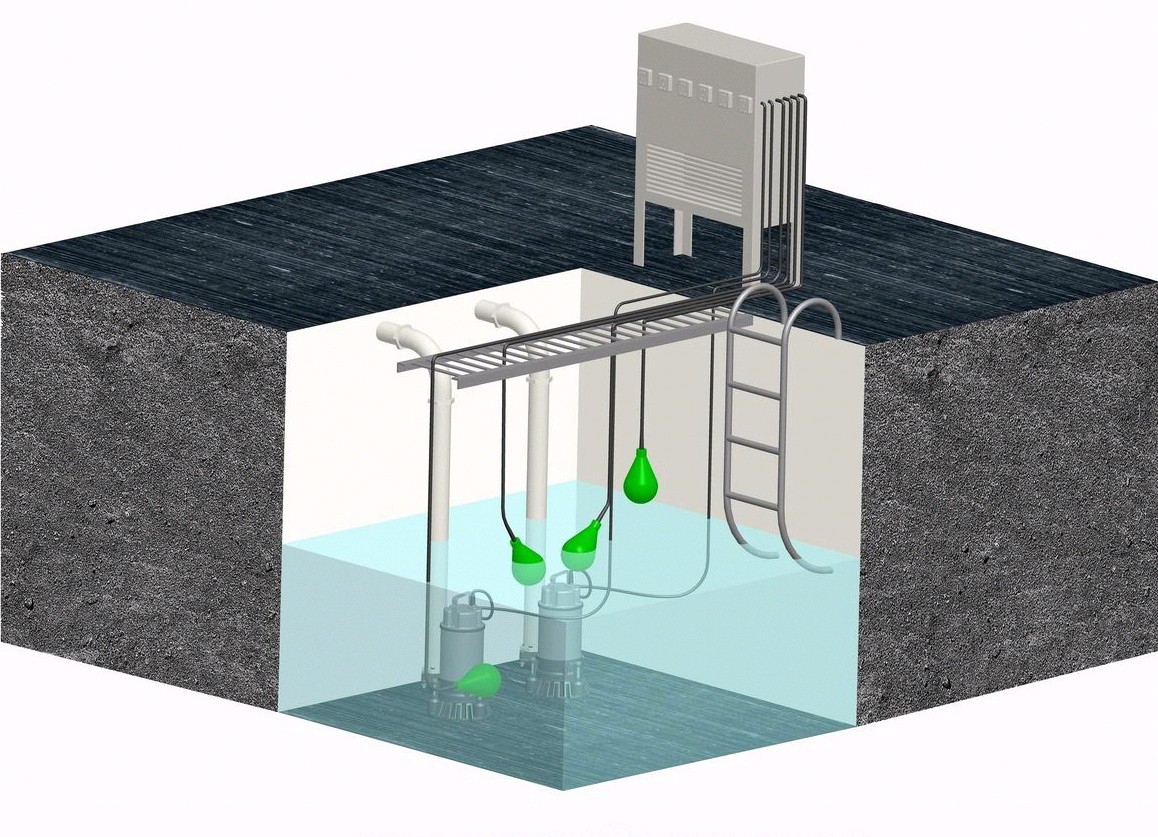

Example
Typically four regulators are used in a two pump station.
